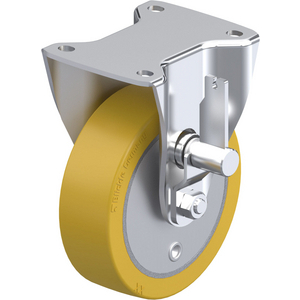

BLICKLE 160MMDRUMBRAKECASTOR BH-GTH-160K-TB
Rollers for pallet trucks, with Blickle Extrathane® polyurethane tread, with steel wheel centre
References
blickle:BH-GTH 160K-TB
rubix:182A6058
manufacturer :761396
ean:4047526119867
Technical specifications
| Load capacity | 800 kg |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
Product details : BLICKLE 160MMDRUMBRAKECASTOR BH-GTH-160K-TB
Tread:
- high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A
- low rolling resistance
- high abrasion resistance
- high cut and tear propagation resistance
- colour light brown, non-marking, non-staining
- excellent chemical connection with the wheel centre
- metal
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
- optimal splash and washproof for ball bearing through combination of clearance sealing and slipping sealing
Technical specifications
Attributes
| Logistic Weight | 4120 g |
|---|---|
| Load capacity | 800 kg |
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Cast Iron |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 202 mm |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| Shore A Hardness | 92 Shore |
| Plate width | 110 mm |
| Plate length | 140 mm |
| 202 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 258.07 excl. VAT
/ Each
£ 309.68 incl. VAT
Usually arrives within 14 working days
