SMC KSH10-04S FITTING

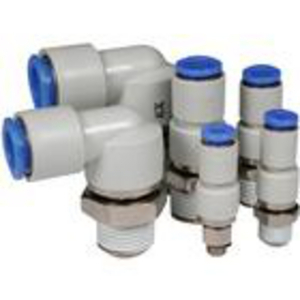

Rotary one-touch fitting series KS comes with a ball race bearing for oscillating or rotating applications. KS series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KS is suitable for copper free applications.

•Rotary, One-touch fitting (standard)
•Metric threads
•Tube OD:  Ø4, Ø6, Ø8, Ø10, Ø12
•Maximum operating pressure:  1.0 MPa
•Ambient & fluid temperature: -5 to 60°C

Model: H (Male Connector)
Applicable Tube OD: Ø10 mm
Port Size: 04 (R[PT] 1/2)
Sealant: S [Sealant]
