TSUBAKI 0232122008 RS12B-NP-2 BS TWO PITCH OFFSET LINK
RS12B-NP-2 Tsubaki BS two pitch offset link
References
tsubaki:RS12B NP 2 2POL RP
rubix:267A0177
manufacturer :0232122008
ean:8718472264999
Technical specifications
| Chain | BS NP Chain |
|---|---|
| Chain pitch | 19.05 mm |
Product details : TSUBAKI 0232122008 RS12B-NP-2 BS TWO PITCH OFFSET LINK

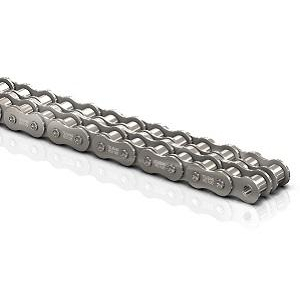

BS NP Chain is a Tsubaki BS chain that has been plated with Nickel. NP Chain has a light corrosion resistance and an attractive appearance. NP Chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding BS chain, so please take this into account when making your chain selection. It has a working temperature range of: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 99 g |
|---|---|
| Chain | BS NP Chain |
| Chain pitch | 19.05 mm |
| Weight | 99 g |
| Inner width min. | 11.68 mm |
| Roller diameter | 12.07 mm |
| Plate height | 16.1 mm |
| Plate thickness | 1.8 mm |
| Pin length | 46.3 mm |
| Plate type | Link |
| Chain pin diameter | 5.72 mm |
Show UNSPSC/ECL@SS
£ 23.66 excl. VAT
/ Each
£ 28.39 incl. VAT
Usually arrives within 14 working days
