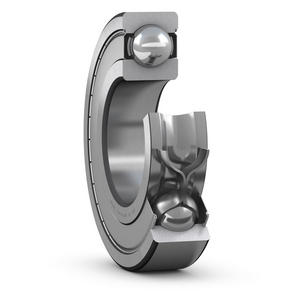

Deep groove ball bearing SKF 6306-2Z/C3HT, Outer diameter: 72 mm | Width: 19 mm | Inner diameter: 30 mm
SKF Deep groove ball bearing 6306 Series
References
skf:6306-2Z/C3HT
rubix:103A0942
manufacturer :95266
ean:7316570454710

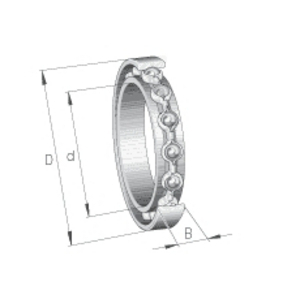

Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Outer diameter | 72 mm |
| Width | 19 mm |
Product details : SKF RADIAL BALL BEARING 6306-2Z/C3HT
Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.
Strengths
- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 19x72x72 mm |
|---|---|
| Logistic Weight | 353 g |
| Inner diameter | 30 mm |
| Outer diameter | 72 mm |
| Width | 19 mm |
| Sealing | Two metal shields |
| Bearing Clearance | C3 |
| Series | 6306 |
| Material | Bearing steel |
| Cage | Steel |
| Reference speed | 20000 rpm |
| Limit speed | 11000 rpm |
| Basic static load, radial - C0r | 16000 N |
| Basic dynamic load, radial - Cr | 29600 N |
Show UNSPSC/ECL@SS
£ 21.59 excl. VAT
/ Each
£ 25.91 incl. VAT
Usually arrives within 14 working days
