References
SNR:UCPAE206CC
Rubix:206A0877
Manufacturer :UCPAE.206.CC
EAN:3413529582969
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Fixation centre-to-centre distance | 76.2 mm |
| Shaft Height | 42.9 mm |

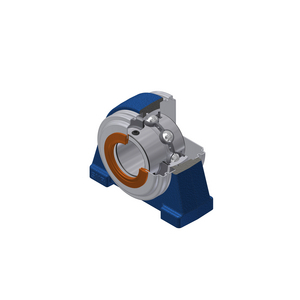

Product details : SNR UCPAE206CC BEARING UNIT
grey cast housing, radial insert ball bearing with socket set screws,seal with slinger
Technical specifications
Attributes
| Inner diameter | 30 mm |
|---|---|
| Fixation centre-to-centre distance | 76.2 mm |
| Shaft Height | 42.9 mm |
| Material | grey cast iron housing; standard bearing steel insert |
| Total bearing width | 40.3 mm |
| Outer diameter | 62 mm |
| Diameter of fixation holes | 10 mm |
| Mounting typ | foot-mounted (mounting from below) |
| Height | 42.9 mm |
| Length | 98 mm |
| Sealing | uszczelnienie z tarczą odśrodkową |
| Lubrication | grease (re-lubricatable), grease fitting r1/8 |
| Series | ucpae200 |
| Weight | 0.92 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 19500 N |
| Width | 38.1 mm |
Show UNSPSC/ECL@SS
£ 52.16 excl. VAT
/ Each
£ 62.59 incl. VAT
- Usually arrives within 14 working days
