SNR UKFLE208HN BEARING UNIT

SNR - Bearing Unit - UKFLE.208.H.N

References

SNR:UKFLE208HN

Rubix:206A2072

Manufacturer :UKFLE.208.H.N

EAN:3413529539932

Inner diameter	35 mm
Width	29 mm
Fixation centre-to-centre distance	143.5 mm

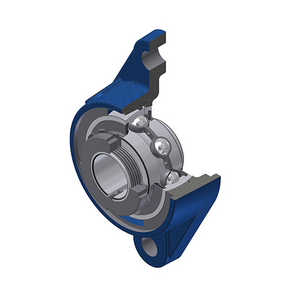

grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Oval flange bearing unit, re-greasable, insert with tapered bore to accept the clamping sleeve, H23XX, groove for receiving the protective cap.

Attributes

Inner diameter	35 mm
Width	29 mm
Fixation centre-to-centre distance	143.5 mm
Material	gray cast iron
Height	172 mm
Length	105 mm
Series	ukfle200
Number of holes	2
Basic static load, radial - C0r	18200 N
Basic dynamic load, radial - Cr	29600 N
Outer diameter	80 mm
Weight	1.7 kg

Show UNSPSC/ECL@SS

£ 55.65 ^{excl. VAT}

/ Each

£ 66.78 ^{incl. VAT}
