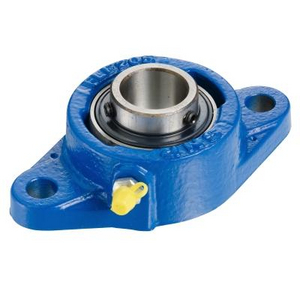

SNR UCFL204 BEARING UNIT
SNR - Housing bearing - UCFL204
References
snr:UCFL204
rubix:206A0127
ean:3413529508532
Technical specifications
| Inner diameter | 20 mm |
|---|---|
| Width | 31 mm |
| Fixation centre-to-centre distance | 90 mm |
Product details : SNR UCFL204 BEARING UNIT
Cast iron housing, bearing insert with grub screws on inner race, seal with centrifugal disc
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 120x65x40 mm |
|---|---|
| Logistic Weight | 438 g |
| Inner diameter | 20 mm |
| Width | 31 mm |
| Fixation centre-to-centre distance | 90 mm |
| Material | Grey Cast Iron |
| Height | 33.3 mm |
| Length | 113 mm |
| Series | UCFL200 |
| Diameter of fixation holes | 12 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 6650 N |
| Basic dynamic load, radial - Cr | 12800 N |
| Outer diameter | 47 mm |
| Weight | 0.43 kg |
Show UNSPSC/ECL@SS
£ 12.28 excl. VAT
/ Each
£ 14.74 incl. VAT
Usually arrives within 14 working days
