SKF SPHER ROLLER BEARING 22314 EK/C4
Spherical Roller Bearing
References
skf:22314 EK/C4
rubix:105A1260
manufacturer :35318
ean:7316570079951
Technical specifications
| Inner diameter | 70 mm |
|---|---|
| Outer diameter | 150 mm |
| Width | 51 mm |
Product details : SKF SPHER ROLLER BEARING 22314 EK/C4

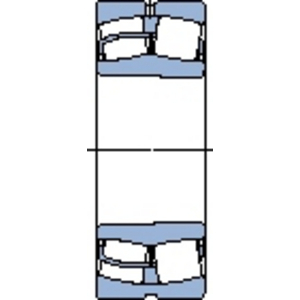

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 51x150x150 mm |
|---|---|
| Logistic Weight | 4214,6 g |
| Inner diameter | 70 mm |
| Outer diameter | 150 mm |
| Width | 51 mm |
| Bearing Clearance | C4 |
| Series | 223E |
| Cage | Steel |
| Reference speed | 3400 rpm |
| Limit speed | 4500 rpm |
| Basic static load, radial - C0r | 430 N |
| Basic dynamic load, radial - Cr | 413 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 220.04 excl. VAT
/ Each
£ 264.05 incl. VAT
Usually arrives within 14 working days
