SKF 22317 E/W64 SRB SOLID OIL
Spherical Roller Bearing
References
skf:22317 E/W64
rubix:237A3914
manufacturer :130609
ean:07316571553245
Technical specifications
| Inner diameter | 85 mm |
|---|---|
| Outer diameter | 180 mm |
| Width | 60 mm |
Product details : SKF 22317 E/W64 SRB SOLID OIL

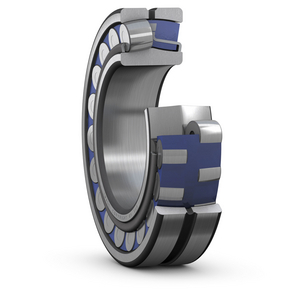

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 7140 g |
|---|---|
| Inner diameter | 85 mm |
| Outer diameter | 180 mm |
| Width | 60 mm |
| Bearing Clearance | CN |
| Series | 223E |
| Cage | Steel |
| Limit speed | 300 rpm |
| Basic static load, radial - C0r | 620 N |
| Basic dynamic load, radial - Cr | 577 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 755.07 excl. VAT
/ Each
£ 906.08 incl. VAT
Usually arrives within 14 working days
