SKF 23034-2CS5/VT143 SPHERICAL ROLLER BRG
Spherical Roller Bearing
References
skf:23034-2CS5/VT143
rubix:242A7209
manufacturer :362858
ean:7316574114924
Technical specifications
| Inner diameter | 170 mm |
|---|---|
| Outer diameter | 260 mm |
| Width | 67 mm |
Product details : SKF 23034-2CS5/VT143 SPHERICAL ROLLER BRG

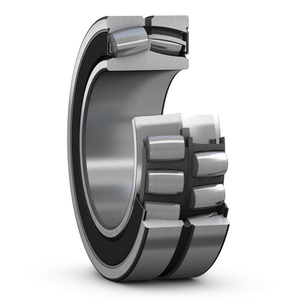

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 12650 g |
|---|---|
| Inner diameter | 170 mm |
| Outer diameter | 260 mm |
| Width | 67 mm |
| Bearing Clearance | CN |
| Series | 230 C |
| Limit speed | 630 rpm |
| Basic static load, radial - C0r | 1080 N |
| Basic dynamic load, radial - Cr | 746 N |
Show UNSPSC/ECL@SS
£ 1,156.45 excl. VAT
/ Each
£ 1,387.74 incl. VAT
Usually arrives within 14 working days
