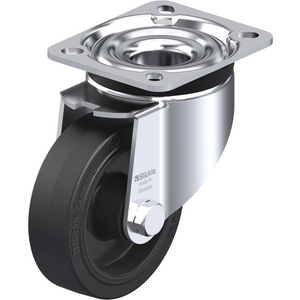

BLICKLE-LK-POEV-100R-1 CASTOR
Stainless steel light duty swivel castor, with bolt hole, with synthetic expander Wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard
References
blickle:LK-POEV 100R-1
rubix:200A8172
manufacturer :250357
ean:4047526250355
Technical specifications
| Load capacity | 200 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
Product details : BLICKLE-LK-POEV-100R-1 CASTOR
Bracket: LKRXA series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey ("-ELS" version colour black)
- large thread guard
with additional
ball bearing seals
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
Technical specifications
Attributes
| Logistic Weight | 1021 g |
|---|---|
| Load capacity | 200 kg |
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Rubber |
| Min. temperature | -25 °C |
| Max. temperature | 70 °C |
| Total height | 130 mm |
| Type of bearing | Roller bearing |
| Running sole / tire colour | Black |
| Shore A Hardness | 65 Shore |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 130 mm | |
| 38 mm |
Show UNSPSC/ECL@SS
£ 31.25 excl. VAT
/ Each
£ 37.50 incl. VAT
Usually arrives within 14 working days
