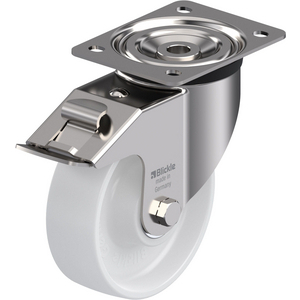

BLICKLE LX-PO 150XK-FI STAINLESS STEEL SWIVEL CASTOR
Stainless steel swivel castor, with top plate fitting, medium duty design, with brake system 'stop-fix' Nylon wheel
References
blickle:LX-PO 150XK-FI
rubix:255A9223
manufacturer :266908
ean:4047526266905
Technical specifications
| Load capacity | 400 kg |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
Product details : BLICKLE LX-PO 150XK-FI STAINLESS STEEL SWIVEL CASTOR
Bracket: LX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 2300 g |
|---|---|
| Load capacity | 400 kg |
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 190 mm |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Beige |
| Plate width | 110 mm |
| Plate length | 140 mm |
| 190 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 188.63 excl. VAT
/ Each
£ 226.36 incl. VAT
Usually arrives within 14 working days
