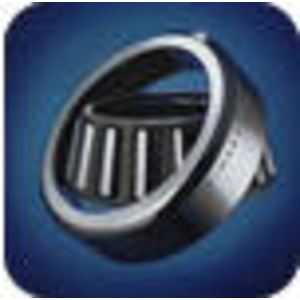

Tapered roller bearing Timken LM 451349/LM451310, Outer diameter: 355.6 mm | Inner diameter: 266.7 mm | Width: 57.15 mm
Tapered Roller Bearing
References
timken:LM 451349/LM451310
rubix:396A3662
ean:0053893661155
Technical specifications
| Inner diameter | 266.7 mm |
|---|---|
| Outer diameter | 355.6 mm |
| Width | 57.15 mm |
Product details : TIMKEN LM451349-90401 DOUBLE ROW TAPERED ROLLER BEARING
This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Strengths
•These maximum fillet radii will be cleared by the bearing corners
These maximum fillet radii will be cleared by the bearing corners
Negative value indicates effective center inside cone backface
These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use
These maximum fillet radii will be cleared by the bearing corners
Negative value indicates effective center inside cone backface
These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use
Technical specifications
Attributes
| Inner diameter | 266.7 mm |
|---|---|
| Outer diameter | 355.6 mm |
| Width | 57.15 mm |
| Series | lm451300 |
| Material | stamped steel (cage) |
| Cage | steel |
| Total bearing width | 57.15 mm |
| Standard | iso |
| Basic static load, radial - C0r | 1510000 N |
| Basic dynamic load, radial - Cr | 193000 N |
Show UNSPSC/ECL@SS
£ 1,809.65 excl. VAT
/ Each
£ 2,171.58 incl. VAT
Usually arrives within 14 working days
