Tapered roller bearing Timken 93127CD, Outer diameter: 317.5 mm | Width: 317.5 mm

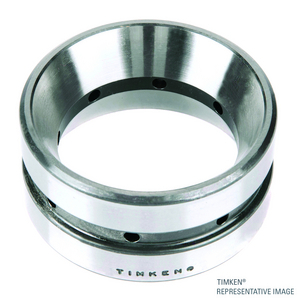

Tapered Roller Bearing Double Cup
References
timken:93127CD
rubix:106A2530
manufacturer :100024861
ean:0053893440255
Technical specifications
| Outer diameter | 317.5 mm |
|---|---|
| Width | 317.5 mm |
| Bearing Clearance | CN |
Product details : TIMKEN 93127CD-20081 TAPERED ROLLER BEARING DOUBLE CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Strengths
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Applications
Heavy-duty gear drives; Various industrial configurations
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 111,252x317,5x317,5 mm |
|---|---|
| Logistic Weight | 15035 g |
| Packaged dimensions (D x W x H) | 114,3x330,2x330,2 mm |
| Package weight | 15034,8 g |
| Outer diameter | 317.5 mm |
| Width | 317.5 mm |
| Bearing Clearance | CN |
| Series | 93000 |
| Total bearing width | 317.5 mm |
Show UNSPSC/ECL@SS
£ 2,928.73 excl. VAT
/ Each
£ 3,514.48 incl. VAT
Usually arrives within 14 working days
