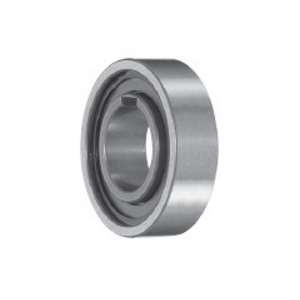

TSUBAKI 5002000600 TSS-60 CAM CLUTCH

TSUBAKI 5002000600 TSS-60 CAM CLUTCH

TSS-20 CAM CLUTCH

See technical informationSee documents
References
Tsubaki:TSS60
Rubix:267A0293
Manufacturer :5002000600
EAN:8718472212235
TSUBAKI FREEWHEEL CLUTCH TSS 60
TSUBAKI FREEWHEEL CLUTCH TSS 60
TSUBAKI FREEWHEEL CLUTCH TSS 60
Technical specifications
Inner diameter60 mm
Outer diameter110 mm
Width22 mm
See all Specifications
Documents

Product details : TSUBAKI 5002000600 TSS-60 CAM CLUTCH

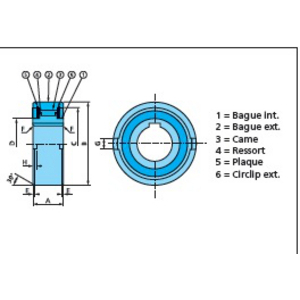

Tsubaki TSS Series clutches are designed for press fit installation. Outside dimensions are the same as series 62 ball bearings. This design provides easy handling and installation, ideal for general applications.

Technical specifications

Attributes
Logistic Weight945 g
Inner diameter60 mm
Outer diameter110 mm
Width22 mm
Seriestss
Weight0.945 kg
Reference speed910 rpm
Total bearing width22 mm
Auth. torque649 N.m
Standarddin 6885. 3
Show UNSPSC/ECL@SS
£ 333.47 excl. VAT
/ Each
£ 400.16 incl. VAT
  • Usually arrives within 14 working days
