Angular contact ball bearing FAG 7217-B-XL-TVP-UB, Outer diameter: 150 mm | Inner diameter: 85 mm | Width: 28 mm

Angular contact ball bearing

See technical information

References

FAG:7217-B-XL-TVP-UB
Rubix:274A7100
Manufacturer :0882826600000
EAN:4054372617034
brand logo

Technical specifications

Inner diameter85 mm
Outer diameter150 mm
Width28 mm
See all Specifications

Product details : FAG 7217-B-XL-TVP-UB ANGULAR CONTACT BALL BEARING

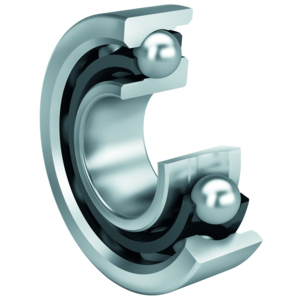

Angular contact ball bearing 72..-B-XL-TVP, single row, X-life, plastic cage
Angular contact ball bearing 72..-B-XL-TVP, single row, X-life, plastic cage

Technical specifications

Attributes
Inner diameter85 mm
Outer diameter150 mm
Width28 mm
Sealingopen
Series72..-b-xl-tvp-ub
Cagepolyamide
Weight1.9 kg
Reference speed4750 rpm
Limit speed5900 rpm
Angle40 °
Precisionp6 (abec 3 / iso class 6)
Basic static load, radial - C0r86000 N
Basic dynamic load, radial - Cr97000 N
£ 114.25 excl. VAT
/ Each
£ 137.10 incl. VAT
  • Delivery usually within ( 7 ) days
