SKF F3BBC-40M-CPSS-DFH SKF FOOD GRADE BEARING


Ball Bearing Unit

References
skf:F3BBC 40M-CPSS-DFH
rubix:214A5767
ean:07316577874771
brand logo
brand logo
Technical specifications
Inner diameter40 mm
Width40.7 mm
Fixation centre-to-centre distance50 mm
See all Specifications

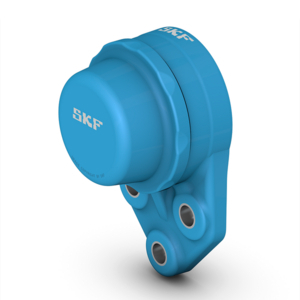

Product details : SKF F3BBC-40M-CPSS-DFH SKF FOOD GRADE BEARING


These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Strengths

- Chemical Resistant
Lubricated For Life With A Non-Toxic Food Grade Grease
Lightweight
Strong

Technical specifications


Attributes
Inner diameter40 mm
Width40.7 mm
Fixation centre-to-centre distance50 mm
MaterialStainless steel
Height157 mm
Length98 mm
SeriesBlueRange
Total bearing width38 mm
Diameter of fixation holes14.2 mm
Number of holes3
Basic static load, radial - C0r19000 N
Basic dynamic load, radial - Cr24700 N
Outer diameter80 mm
Show UNSPSC/ECL@SS
£ 220.89 excl. VAT
/ Each
£ 265.07 incl. VAT
  • In stock: Next day delivery
