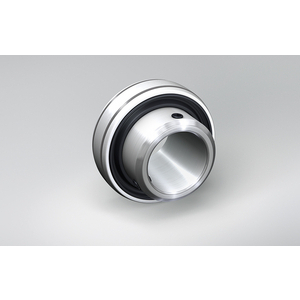

RHP BEARING INSERT 1220-3/4G

Insert bearing with set screw RHP 1220-3/4G, Outer diameter: 47 mm | Inner diameter: 28.3 mm | Width: 25.8 mm

Bearing Insert

See technical information
References
RHP:1220-3/4G
Rubix:158A4332
Manufacturer :1220-3/4G R
EAN:00747023042784
brand logo
Technical specifications
Inner diameter28.3 mm
Outer diameter47 mm
Width25.8 mm
See all Specifications

Product details : RHP BEARING INSERT 1220-3/4G

Short inner ring bearing. Same construction as 6200 series, but more adaptable to European standard bearings. 1200 G series: bearing with grub screw in the inner ring and spherical outer ring. 1200 ECG series: bearing with eccentric locking collar and spherical outer ring.

Technical specifications

Attributes
Logistic Weight100 g
Inner diameter28.3 mm
Outer diameter47 mm
Width25.8 mm
Bearing Clearancec3
Sealingtwo rubber seals
Series1200g
Materialhigh-grade steel (through-hardened)
Cagesteel
Reaming19.05 mm
Limit speed6700 rpm
Total bearing width25.8 mm
Basic static load, radial - C0r6650 N
Basic dynamic load, radial - Cr12800 N
Weight0.1 kg
Show UNSPSC/ECL@SS
£ 16.77 excl. VAT
/ Each
£ 20.12 incl. VAT
  • Delivery usually within ( 2 ) days
