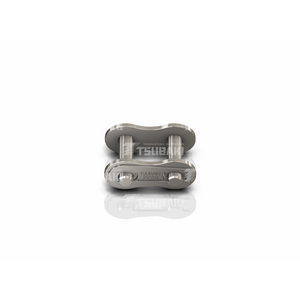

TSUBAKI 0232080002 RS08B-NP-1 BS CONNECTING LINK
BS NP Chain Connecting Link
References
tsubaki:RS08B NP 1 CL
rubix:267A0159
manufacturer :0232080002
ean:8718472017809
Technical specifications
| Chain | 08BNPCL |
|---|---|
| Chain pitch | 12.7 mm |
| Profile | Simplex (1) |
Product details : TSUBAKI 0232080002 RS08B-NP-1 BS CONNECTING LINK
BS NP Chain is a Tsubaki BS chain that has been plated with Nickel. NP Chain has a light corrosion resistance and an attractive appearance. NP Chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding BS chain, so please take this into account when making your chain selection. It has a working temperature range of: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 10 g |
|---|---|
| Chain | 08BNPCL |
| Chain pitch | 12.7 mm |
| Profile | Simplex (1) |
| Weight | 10 g |
| Inner width min. | 7.75 mm |
| Roller diameter | 8.51 mm |
| Plate height | 11.8 mm |
| Plate thickness | 1.6 mm |
| Pin length | 18.6 mm |
| Plate type | Round |
| Chain pin diameter | 4.45 mm |
Show UNSPSC/ECL@SS
£ 3.25 excl. VAT
/ Each
£ 3.90 incl. VAT
Usually arrives within 14 working days
