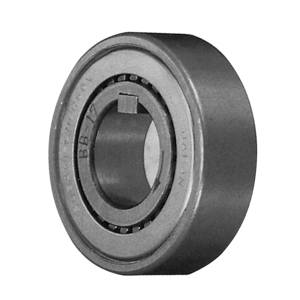

TSUBAKI 5014020010 BB20-1K-K CAM CLUTCH WITH KEYWAY

Cam Clutch BB

See technical information

References

Tsubaki:BB20-1K-K
Rubix:267A0708
Manufacturer :5014020010
brand logo

Technical specifications

Inner diameter20 mm
Outer diameter47 mm
Width14 mm
See all Specifications

Product details : TSUBAKI 5014020010 BB20-1K-K CAM CLUTCH WITH KEYWAY

Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.

Technical specifications

Attributes
Logistic Weight164 g
Inner diameter20 mm
Outer diameter47 mm
Width14 mm
Seriesbb
Weight0.164 kg
Reference speed1600 rpm
Auth. torque61 N.m
StandardDIN 6885. 3
Basic static load, radial - C0r4900 N
Basic dynamic load, radial - Cr8500 N
£ 47.86 excl. VAT
/ Each
£ 57.43 incl. VAT
  • Usually arrives within 14 working days
