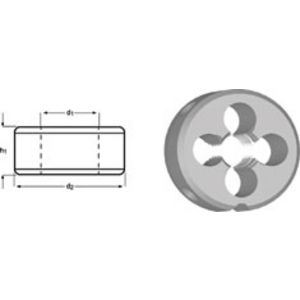

DORMER F1203/4 GUN NOSED DIE 3/4 INCH X 10 5977832
Cutting plates F120
References
dormer:F1203/4
rubix:1069656
ean:7320760104385
Technical specifications
| Type | gun nosed |
|---|---|
| Cage diameter | 45 mm |
| Cage thickness | 18 mm |
Product details : DORMER F1203/4 GUN NOSED DIE 3/4 INCH X 10 5977832
HSS Cutting plate for UNC thread ISO 2568 for non-alloyed steel <850 N/mm². Cast iron. Aluminium en aluminium- magnesium alloys Si <10%.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
Technical specifications
Attributes
| Type | gun nosed |
|---|---|
| Cage diameter | 45 mm |
| Cage thickness | 18 mm |
| Body material | hss |
| Threading (inch) | 3/4 |
| Threading diameter | 19.05 mm |
| No. of threads per inch | 10 |
Show UNSPSC/ECL@SS
£ 123.30 excl. VAT
/ Each
£ 147.96 incl. VAT
Usually arrives within 14 working days
