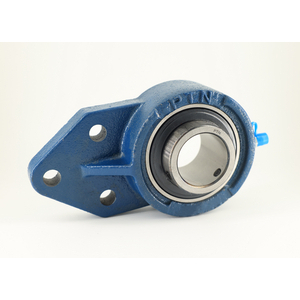

PTN FLANGE HOUSED UNIT UCFB204
Flange Housed Unit
References
ptn:UCFB204
rubix:246A7781
manufacturer :893586
ean:3660338460449
Technical specifications
| Inner diameter | 20 mm |
|---|---|
| Width | 52 mm |
| Fixation centre-to-centre distance | 42 mm |
Product details : PTN FLANGE HOUSED UNIT UCFB204
Cast iron flange housed units. Housing inserts consist of ball bearings and can be available in different materials. The insert bearing is a single row deep groove ball bearing with a convex-sphered outside diameter The external grease nipple is used for lubricating the ball bearing.
Strengths
High cost efficiency
High versatility
The inserted ball bearing can accommodate moderate initial misalignment, but normally can not permit axial displacement
Ready for mounting units
Lubricated and sealed bearing
Applications
Agriculture
Construction machinery
Food and beverages
Conveyors
Packaging
Power transmission
Material handling
General engineering applications

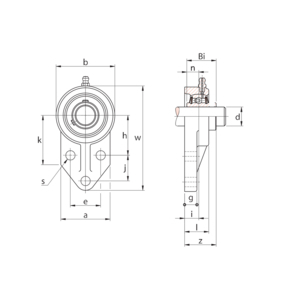

Technical specifications
Attributes
| Inner diameter | 20 mm |
|---|---|
| Width | 52 mm |
| Fixation centre-to-centre distance | 42 mm |
| Material | Cast Iron |
| Height | 110 mm |
| Length | 52 mm |
| Series | UCFB200 |
| Total bearing width | 31 mm |
| Diameter of fixation holes | 10 mm |
| Number of holes | 3 |
| Outer diameter | 62 mm |
| Weight | 0.64 kg |
Show UNSPSC/ECL@SS
£ 6.96 excl. VAT
/ Each
£ 8.35 incl. VAT
In stock: Next day delivery
