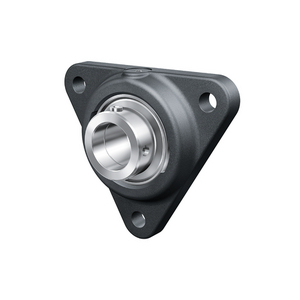

INA PCFTR15-XL HOUSING UNITS PCFTR THREE-BOLT FLANGED CA
Flanged housing unit
References
ina:PCFTR15-XL
rubix:238A1926
manufacturer :0008317510000
ean:4012802791099
Technical specifications
| Inner diameter | 15 mm |
|---|---|
| Width | 20 mm |
| Fixation centre-to-centre distance | 76.1 mm |
Product details : INA PCFTR15-XL HOUSING UNITS PCFTR THREE-BOLT FLANGED CA
Housing units PCFTR, three-bolt flanged housing units, cast iron, eccentric locking collar, P seals
Technical specifications
Attributes
| Inner diameter | 15 mm |
|---|---|
| Width | 20 mm |
| Fixation centre-to-centre distance | 76.1 mm |
| Material | Cast Iron |
| Height | 32.1 mm |
| Series | PCFTR..-XL |
| Total bearing width | 20 mm |
| Diameter of fixation holes | 11.5 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 4750 N |
| Basic dynamic load, radial - Cr | 9800 N |
| Outer diameter | 28.4 mm |
Show UNSPSC/ECL@SS
£ 30.21 excl. VAT
/ Each
£ 36.25 incl. VAT
Usually arrives within 14 working days
