INA PCJ12-XL HOUSING UNITS PCJ FOUR-BOLT FLANGED HOUSING UNITS CAST IR
Flanged housing unit
References
ina:PCJ12-XL
rubix:238A5028
manufacturer :0009480710000
ean:4012802802702
Technical specifications
| Inner diameter | 12 mm |
|---|---|
| Width | 76 mm |
| Fixation centre-to-centre distance | 54 mm |
Product details : INA PCJ12-XL HOUSING UNITS PCJ FOUR-BOLT FLANGED HOUSING UNITS CAST IR

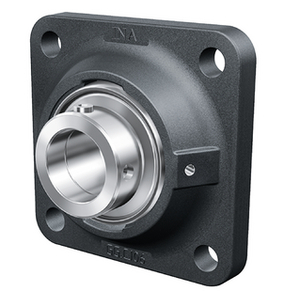

Housing units PCJ, four-bolt flanged housing units, cast iron, eccentric locking collar, P seals
Technical specifications
Attributes
| Inner diameter | 12 mm |
|---|---|
| Width | 76 mm |
| Fixation centre-to-centre distance | 54 mm |
| Material | Cast Iron |
| Height | 39.1 mm |
| Length | 76 mm |
| Series | PCJ..-XL |
| Total bearing width | 27 mm |
| Diameter of fixation holes | 11.5 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 4750 N |
| Basic dynamic load, radial - Cr | 9800 N |
| Outer diameter | 28.4 mm |
Show UNSPSC/ECL@SS
£ 23.39 excl. VAT
/ Each
£ 28.07 incl. VAT
Usually arrives within 14 working days
