Machine thread-cutter machine for standard metric through-bores Sandvik Coromant
References
sandvik coromant:T200-XM100DA-M8C110
Technical specifications
| Threading diameter | 8 mm |
|---|---|
| Thread | 1,25 mm |
Product details :

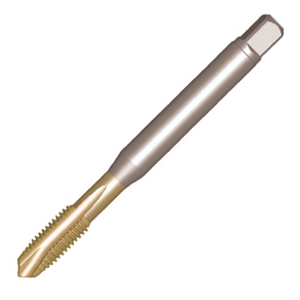

C110 CoroTap™ 200 cutting tap with spiral point is part of the CoroTap™ 200 product family. Spiral point taps push the chips forward and are used for through holes. They have the strongest tap design due to shallow flutes. The flutes are only used for cutting fluid, not for chip evacuation.
Strengths
Low cutting forces
Sharp cutting edges for high quality grooves without burr
Multiple edges for highly productive and economic machining
Large programme with different shank lengths and diameters
Sharp cutting edges for high quality grooves without burr
Multiple edges for highly productive and economic machining
Large programme with different shank lengths and diameters
Technical specifications
Attributes
| Threading diameter | 8 mm |
|---|---|
| Thread | 1,25 mm |
| Tail diameter | 8 mm |
| Coating | AlCrN |
| Material | Powder high speed steels |
| Angle of helix | 0 ° |
| Tolerance | 6H |
