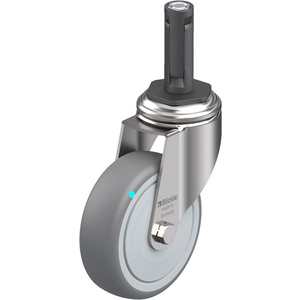

BLICKLE LKRXA-TPA 101KD-11-FK-EXR12 SWIVEL CASTER BRAKED
Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock Nylon heavy duty wheel
References
blickle:LKRXA-TPA 101KFD-11-EXR12
rubix:208A1628
manufacturer :853174
ean:4047526202064
Technical specifications
| Load capacity | 110 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
Product details : BLICKLE LKRXA-TPA 101KD-11-FK-EXR12 SWIVEL CASTER BRAKED
Bracket: LS series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 1000 g |
|---|---|
| Load capacity | 110 kg |
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Wheel housing/rim material | Polypropylene |
| Running sole/tire material | Rubber |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| Total height | 136 mm |
| Type of bearing | Ball bearing (C) |
| Running sole / tire colour | Grey |
| Shore A Hardness | 85 Shore |
| Plate diameter | 57 mm |
| 136 mm | |
| 32 mm |
Show UNSPSC/ECL@SS
£ 54.12 excl. VAT
/ Each
£ 64.94 incl. VAT
Usually arrives within 14 working days
