763580 HEX KEY IMP TOOL 9PE

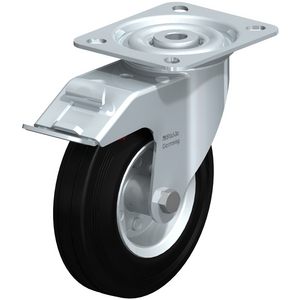

Pressed steel swivel castor, with top plate fitting, heat-resistant, with brake system 'stop-fix' Blickle TempLine® wheel Basic, with solid rubber tyres, with pressed steel rim, heat-resistant
References
blickle:LI-VEHI 125R-FI
rubix:242A7901
manufacturer :763580
ean:4047526121990
Technical specifications
| Load capacity | 90 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 37.5 mm |
Product details : 763580 HEX KEY IMP TOOL 9PE
Bracket: LI series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Wheel: VEHI series
- tyre: highly heat-resistant solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +200 °C
- majority of tyre flattening recovers when in motion under load
Technical specifications
Attributes
| Logistic Weight | 1129 g |
|---|---|
| Load capacity | 90 kg |
| Wheel diameter | 125 mm |
| Wheel width | 37.5 mm |
| Wheel housing/rim material | Steel |
| Running sole/tire material | Rubber |
| Min. temperature | -25 °C |
| Max. temperature | 200 °C |
| Type of bearing | Roller bearing |
| Running sole / tire colour | Black |
| 150 mm | |
| 37,5 mm |
Show UNSPSC/ECL@SS
£ 6.22 excl. VAT
/ Each
£ 7.46 incl. VAT
Usually arrives within 14 working days
