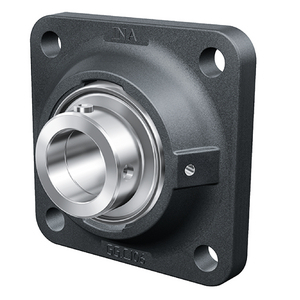

INA RCJY70-XL FLANGED HOUSING UNIT

Housings

References

Superseded Ref:RCJY70-XL-I

INA:RCJY70-XL

Rubix:100A8206

Manufacturer :0947307920000

EAN:4064327110879

Inner diameter	70 mm
Width	188 mm
Fixation centre-to-centre distance	150 mm

Housing units RCJY, four-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Attributes

Inner diameter	70 mm
Width	188 mm
Fixation centre-to-centre distance	150 mm
Material	grey cast iron
Height	188 mm
Length	188 mm
Series	rcjy..-xl
Total bearing width	82.4 mm
Diameter of fixation holes	18 mm
Number of holes	4
Basic static load, radial - C0r	44000 N
Basic dynamic load, radial - Cr	66000 N
Outer diameter	188 mm
Weight	5.35 kg
Mounting typ	four-bolt flanged housing; distance-fixed bore; grub screws in inner ring

Show UNSPSC/ECL@SS

£ 167.35 ^{excl. VAT}

/ Each

£ 200.82 ^{incl. VAT}
