INA IR70X80X56 INNER RING

INA IR70X80X56 INNER RING

Inner ring

See technical information
References
INA:IR70X80X56
Rubix:102A3437
Manufacturer :0000202300000
EAN:4012802022483
brand logo
Technical specifications

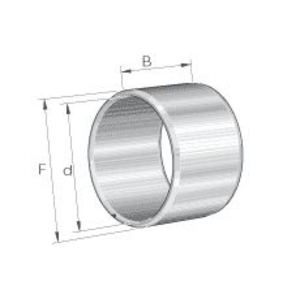

Inner diameter70 mm
Outer diameter80 mm
Width56 mm
See all Specifications

Product details : INA IR70X80X56 INNER RING

Inner ring IR, bevels on the runways, tolerances according to DIN 620.

Strengths

The chamfers at the ends allows easy insertion into the bearings and avoids the deterioration of the sealing lips.

Applications

Used on cages, sockets and needle bearings.

Technical specifications

Attributes
Logistics dimensions (L x W x H)56x80x80 mm
Logistic Weight506 g
Inner diameter70 mm
Outer diameter80 mm
Width56 mm
Bearing Clearancecn
Show UNSPSC/ECL@SS
£ 138.80 excl. VAT
/ Each
£ 166.56 incl. VAT
  • Delivery usually within ( 7 ) days
