Insert bearing with set screw SKF YAR 216-300-2F, Outer diameter: 140 mm | Inner diameter: 76.2 mm | Width: 77.87 mm
Insert Bearing
References
skf:YAR 216-300-2F
rubix:183009
manufacturer :103655
ean:7316571257600
Technical specifications
| Inner diameter | 76.2 mm |
|---|---|
| Outer diameter | 140 mm |
| Width | 77.87 mm |

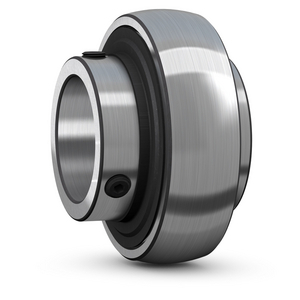

Product details : SKF Y-UNIT YAR 216-300-2F
Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Strengths
- Designed for constant and alternating rotary movements
- Quick and easy mounting on the shaft
- Absorption of installation-related misalignments
- Long service life
- Reduced noise and vibration level
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 77,87x140x140 mm |
|---|---|
| Logistic Weight | 2723 g |
| Inner diameter | 76.2 mm |
| Outer diameter | 140 mm |
| Width | 77.87 mm |
| Series | yar |
| Cage | other |
| Limit speed | 2400 rpm |
| Basic static load, radial - C0r | 53000 N |
| Basic dynamic load, radial - Cr | 72800 N |
| Sealing | two rubber seals |
Show UNSPSC/ECL@SS
£ 157.79 excl. VAT
/ Each
£ 189.35 incl. VAT
Usually arrives within 14 working days
