DORMER C1105/16 DRILL 5/16 INCH 5983946
Key-way cutter C110
References
dormer:C1105/16
rubix:113A6682
ean:7320760639849

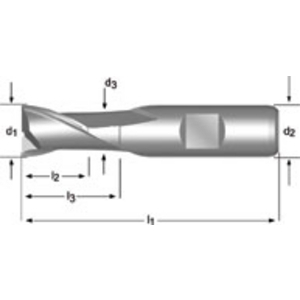

Technical specifications
| Diameter | 7.94 mm |
|---|---|
| Type of tail | weldon |
| Tail diameter | 10 mm |
Product details : DORMER C1105/16 DRILL 5/16 INCH 5983946
HSS-E-PM Extra short key-way cutter with weld-on shaft DIN 327D N 30° uncoated 2-cutter for non-alloyed steel <700 N/mm². Titanium. Nickel and copper alloys.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
Technical specifications
Attributes
| Diameter | 7.94 mm |
|---|---|
| Type of tail | weldon |
| Tail diameter | 10 mm |
| Number of teeth | 2 |
| Length of cut | 11 mm |
| Total length | 61 mm |
| Body material | hss-e / pm |
| Centre cut | no |
| Capacity length | 11 mm |
| Cutting angle | 30 ° |
Show UNSPSC/ECL@SS
£ 37.26 excl. VAT
/ Each
£ 44.71 incl. VAT
Usually arrives within 14 working days
