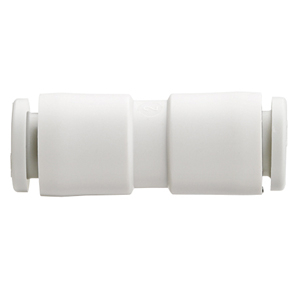

SMC KQ2H02-00A MALE FITTING 2 TUBE
KQ2 One-touch Straight Union
See technical informationSee documentsReferences
SMC:KQ2H02-00A
Rubix:393A5383
Manufacturer :00984300
EAN:3618036065664
Technical specifications
| Connection 1 | quick connector (plug-in) for ø2 mm tube |
|---|---|
| Material | body: c3604 brass + pbt/pp; chuck/guide: 304 stainless steel; release button: pom; seals (o-ring/ring seal): nbr |
Documents
Product details : SMC KQ2H02-00A MALE FITTING 2 TUBE
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
KQ2H*-00, One-touch Fitting White Color - Straight Union
Strengths
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Technical specifications
Attributes
| Logistic Weight | 1 g |
|---|---|
| Connection 1 | quick connector (plug-in) for ø2 mm tube |
| Material | body: c3604 brass + pbt/pp; chuck/guide: 304 stainless steel; release button: pom; seals (o-ring/ring seal): nbr |
| Length | 24.8 mm |
| Min. temperature | -5 °C |
| Colour | white |
| Connection 2 | quick connector (plug-in) for ø2 mm tube |
| Max. temperature | 60 °C |
| Service pressure | 10 bar |
| Type of fluid | air, water |
| Metric exterior tube diameter | 2 mm |
| Metric exterior tube diameter 2 | 2 mm |
Show UNSPSC/ECL@SS
£ 2.95 excl. VAT
/ Each
£ 3.54 incl. VAT
- Usually arrives within 14 working days
