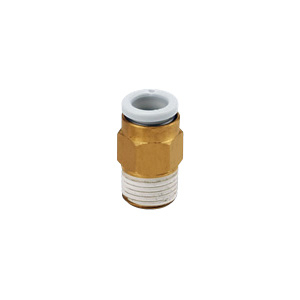

SMC KQ2H07-02NS ONE-TOUCH FITTING
KQ2H One-touch Fitting
References
smc:KQ2H07-02NS
rubix:393A7579
Technical specifications
| Connection 1 | 1/4 in |
|---|---|
| Connection 2 | 10,9 in |
Product details : SMC KQ2H07-02NS ONE-TOUCH FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
Quick assembly/disassembly.
Applications
For vacuum and compressed air. Also suitable for water.
Technical specifications
Attributes
| Logistic Weight | 12 g |
|---|---|
| Connection 1 | 1/4 in |
| Connection 2 | 10,9 in |
| Length | 14 mm |
| Type of threading | r |
| Connecting diameter | r 1/4 '' |
| Threading | imperial |
| Max. temperature | 60 °C |
| Min. temperature | 0 °C |
| Type of fluid | air;water |
Show UNSPSC/ECL@SS
£ 3.63 excl. VAT
/ Each
£ 4.36 incl. VAT
Usually arrives within 14 working days
