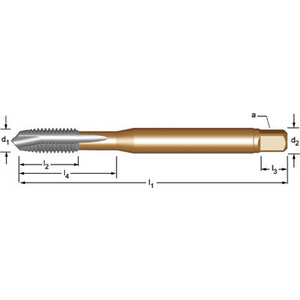

DORMER EP00M10DIN376 SPIRAL POINT TAP M10 X 1.50 MM 5973423
Machine taps EP006H
References
dormer:EP00M10DIN376
rubix:2008155
manufacturer :5973423
ean:7320760135921
Technical specifications
| Threading | M10 |
|---|---|
| Threading diameter | 10 mm |
| Input | 7 mm |
Product details : DORMER EP00M10DIN376 SPIRAL POINT TAP M10 X 1.50 MM 5973423
HSS-E Machine tap for metric thread uncoated DIN 371 form B cut 2.5xD continual holes for steel <1200 N/mm². Copper Brass en bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Tap MACH SPECTRUM M10 EP00 DIN 376 COUPE GUN GOLD 6H
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
Technical specifications
Attributes
| Threading | M10 |
|---|---|
| Threading diameter | 10 mm |
| Input | 7 mm |
| Total length | 100 mm |
| Thread depth | 20 mm |
| Body material | HSS-E |
| Tolerance | 6H |
| Direction of threading | Right |
| Drilling diameter | 7 mm |
| Tail diameter | 7 mm |
| Square drive adapter | 5.5 mm |
| Coating | Bright |
Show UNSPSC/ECL@SS
£ 27.01 excl. VAT
/ Each
£ 32.41 incl. VAT
Usually arrives within 14 working days
