DORMER E5501/8NO7 TAP 1/8 INCH X 28 5976472
Machine thread-cutters E550
References
dormer:E5501/8NO7
rubix:115A2389
ean:7320760159408
Technical specifications
| Total length | 59 mm |
|---|---|
| Body material | hss |
| Type | british blind bores and through-bores |
Product details : DORMER E5501/8NO7 TAP 1/8 INCH X 28 5976472

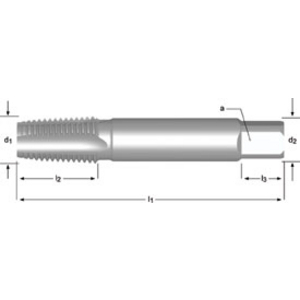

HSS Machine thread-cutters for Rc thread uncoated ISO 2284 shape C straight grooves 1.5xD blind and continual holes for cast iron and copper.
Applications
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Copper (<100 HB <350 N/mm²)
Technical specifications
Attributes
| Total length | 59 mm |
|---|---|
| Body material | hss |
| Type | british blind bores and through-bores |
| With cooling spray | no |
| Drilling diameter | 8.4 mm |
| Square drive adapter | 8 mm |
| Coating | bright |
Show UNSPSC/ECL@SS
£ 58.31 excl. VAT
/ Each
£ 69.97 incl. VAT
Usually arrives within 14 working days
