DORMER A9763/8 DRILL 3/8 INCH 5973272
Metal drills A976
References
dormer:A9763/8
rubix:404855
ean:7320760347126

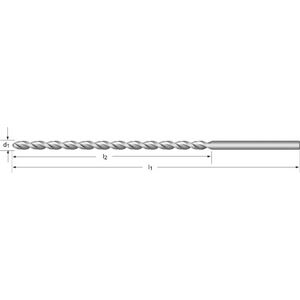

Technical specifications
| Drilling diameter | 9.53 mm |
|---|---|
| Total length | 265 mm |
| Length of cut | 185 mm |
Product details : DORMER A9763/8 DRILL 3/8 INCH 5973272
HSS-E Extra long spiral drill with cylindrical shaft DIN 1869/1 PFX 130° uncoated 15xD for steel <1620 N/mm ².
Applications
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 9.53 mm |
|---|---|
| Total length | 265 mm |
| Length of cut | 185 mm |
| Din standard | DIN 1869/1 |
| Ratio of diameter to length of drill hole | 15xD |
| Body material | HSS |
| Sharpening | Standard |
| Tip angle | 130 ° |
| Internal cooling | No |
| Tail diameter | 9.52 mm |
Show UNSPSC/ECL@SS
£ 97.30 excl. VAT
/ Each
£ 116.76 incl. VAT
Usually arrives within 14 working days
