SANDVIK 460.1-1020-051A0-XM GC34 460 SOLID CARBIDE DRILL 6241145

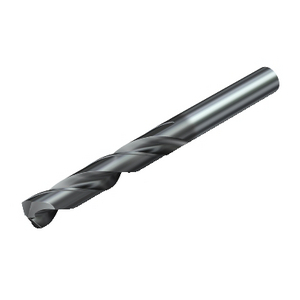

Monobloc solid carbide drill CoroDrill® 460
See technical informationReferences
Sandvik Coromant:460.1-1020-051A0-XMGC34
Rubix:242A8956
Manufacturer :6241145
Technical specifications
| Drilling diameter | 10.2 mm |
|---|---|
| Total length | 118 mm |
| Length of cut | 52.5 mm |
Product details : SANDVIK 460.1-1020-051A0-XM GC34 460 SOLID CARBIDE DRILL 6241145
G34 CoroDrill® 460 solid carbide drill is part of the CoroDrill 460 product family. CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. This drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Monobloc solid carbide drill CoroDrill® 460
Strengths
High productivity and consistent tool life
Exceptional value with no compromise on quality
Excellent hole quality
Outstanding coating and flute design leading to smooth and efficient chip evacuation
Exceptional value with no compromise on quality
Excellent hole quality
Outstanding coating and flute design leading to smooth and efficient chip evacuation
Technical specifications
Attributes
| Drilling diameter | 10.2 mm |
|---|---|
| Total length | 118 mm |
| Length of cut | 52.5 mm |
| Shank type | cylindrical |
| Din standard | din 6535 ha |
| Coating | tialn |
| Tolerance | h6 |
| Ratio of diameter to length of drill hole | 5.14706 |
| Sharpening | standard |
| Tail | din1835-a / din6535-ha |
| Internal cooling | yes |
| Machining material | universal |
| Tip angle | 140 ° |
| Tail diameter | 12 mm |
Show UNSPSC/ECL@SS
£ 75.64 excl. VAT
/ Each
£ 90.77 incl. VAT
- Usually arrives within 14 working days
