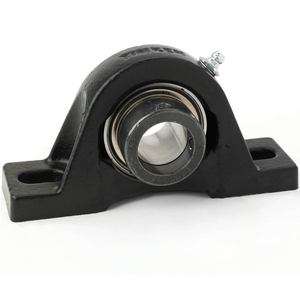

TIMKEN RAK1 1/4 PILLOW BLOCK HOUSED UNIT

Pillow block housed unit with G-KRRB R-Seal insert ball bearing and locking collar

References

Timken:RAK1 1/4

Rubix:396A5324

EAN:0087796058460

Inner diameter	31.75 mm
Fixation centre-to-centre distance	130.2 mm
Shaft Height	46.04 mm

Inch pillow block housing unit Fafnir

Robust Timken/Fafnir pillow block ball bearing unit RAK1 1/4 PT with dust seal and eccentric locking collar. Two-bolt mounted.

Attributes

Inner diameter	31.75 mm
Fixation centre-to-centre distance	130.2 mm
Shaft Height	46.04 mm
Material	cast iron
Total bearing width	51.2 mm
Outer diameter	54 mm
Clamping	23.4 mm
Diameter of fixation holes	14.3 mm
Mounting typ	two-bolt pillow block housing
Height	93.7 mm
Length	166.7 mm
Sealing	shroud seal
Lubrication	grease (factory prelubricated; grease fitting for relubrication)
Series	rak
Weight	1.87 kg
Number of holes	2
Basic static load, radial - C0r	15300 N
Basic dynamic load, radial - Cr	28500 N
Width	46.8 mm

Show UNSPSC/ECL@SS

£ 105.28 ^{excl. VAT}

/ Each

£ 126.34 ^{incl. VAT}
