RHP HOUSED BEARING UNIT TSL40
Pillow Block Unit
References
rhp:TSL40
rubix:158A3001
manufacturer :TSL40 RRS AR3P5
ean:00747023035731
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 148 mm |
| Shaft Height | 49.2 mm |
Product details : RHP HOUSED BEARING UNIT TSL40

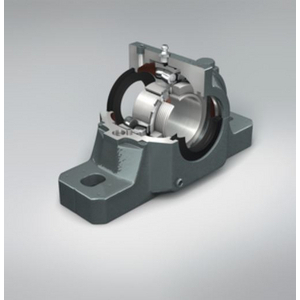

TSL40 RHP Triple Seal Pillow Block Housed Bearing Unit - 40mm Shaft
Technical specifications
Attributes
| Logistic Weight | 2100 g |
|---|---|
| Inner diameter | 40 mm |
| Fixation centre-to-centre distance | 148 mm |
| Shaft Height | 49.2 mm |
| Material | Cast Iron |
| Height | 98.5 mm |
| Length | 180.5 mm |
| Total bearing width | 51 mm |
| Series | SL |
| Weight | 2.1 kg |
| Diameter of fixation holes | 12 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 19900 N |
| Basic dynamic load, radial - Cr | 32500 N |
| Width | 51 mm |
Show UNSPSC/ECL@SS
£ 52.74 excl. VAT
/ Each
£ 63.29 incl. VAT
In stock: Next day delivery
