INA RASEL50-XL-N PLUMMER BLOCK HOUSING UNITWITH RADIAL INSERT BALL BEA
Plummer block housing unit
References
ina:RASEL50-XL-N
rubix:238A1667
manufacturer :0008487430000
ean:4012802801125
Technical specifications
| Inner diameter | 50 mm |
|---|---|
| Fixation centre-to-centre distance | 158 mm |
| Shaft Height | 57.2 mm |
Product details : INA RASEL50-XL-N PLUMMER BLOCK HOUSING UNITWITH RADIAL INSERT BALL BEA

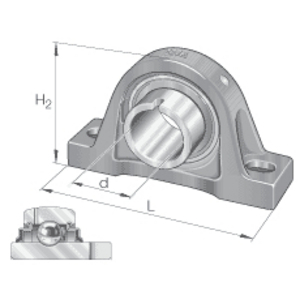

Plummer block housing units RASEL, cast iron housing, non-locating bearing, drive slot on inner ring, R seals
Technical specifications
Attributes
| Inner diameter | 50 mm |
|---|---|
| Fixation centre-to-centre distance | 158 mm |
| Shaft Height | 57.2 mm |
| Material | Cast Iron |
| Height | 115 mm |
| Length | 200 mm |
| Total bearing width | 54 mm |
| Series | RASEL..-XL-N |
| Number of holes | 2 |
| Basic static load, radial - C0r | 23200 N |
| Basic dynamic load, radial - Cr | 37500 N |
| Outer diameter | 200 mm |
| Width | 54 mm |
Show UNSPSC/ECL@SS
£ 80.33 excl. VAT
/ Each
£ 96.40 incl. VAT
Usually arrives within 14 working days
