INA HOUSED BEARING UNIT RSHEY60-XL-N
Plummer block housing unit
References
ina:RSHEY60-XL-N
rubix:101A6113
manufacturer :0009493100000
ean:4012802802108
Technical specifications
| Inner diameter | 60 mm |
|---|---|
| Fixation centre-to-centre distance | 118 mm |
| Shaft Height | 69.9 mm |

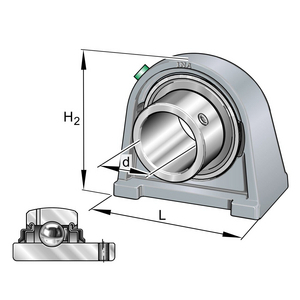

Product details : INA HOUSED BEARING UNIT RSHEY60-XL-N
Radial insert ball bearing with grub screws in inner ring
Technical specifications
Attributes
| Inner diameter | 60 mm |
|---|---|
| Fixation centre-to-centre distance | 118 mm |
| Shaft Height | 69.9 mm |
| Material | Cast Iron |
| Centre-centre of shaft | 69.9 mm |
| Height | 140 mm |
| Length | 150 mm |
| Total bearing width | 60 mm |
| Series | RSHEY |
| Diameter of fixation holes | 16 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 36000 N |
| Basic dynamic load, radial - Cr | 56000 N |
| Outer diameter | 150 mm |
| Width | 60 mm |
Show UNSPSC/ECL@SS
£ 125.16 excl. VAT
/ Each
£ 150.19 incl. VAT
Usually arrives within 14 working days
