BLICKLE FIXED CASTOR LEXRPOEV100GFISG

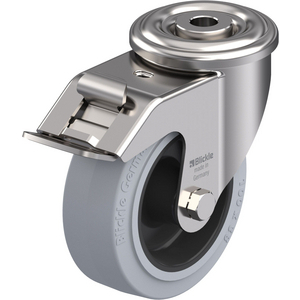

Pressed steel swivel castor, Heavy duty design, with brake system 'ideal-stop' Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard
References
blickle:LEXR-POEV 100G-FI-SG
rubix:154A7892
manufacturer :606657
ean:4047526606657
Technical specifications
| Load capacity | 150 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
Product details : BLICKLE FIXED CASTOR LEXRPOEV100GFISG
Bracket: LK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POEV series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
-
small thread guard
with additional
ball bearing seal
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 731 g |
|---|---|
| Load capacity | 150 kg |
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Rubber |
| Min. temperature | -25 °C |
| Max. temperature | 80 °C |
| Total height | 125 mm |
| Type of bearing | Plain bore |
| Running sole / tire colour | Grey |
| Shore A Hardness | 65 Shore |
| Plate diameter | 70 mm |
| 125 mm | |
| 38 mm |
Show UNSPSC/ECL@SS
£ 56.43 excl. VAT
/ Each
£ 67.72 incl. VAT
Usually arrives within 14 working days
