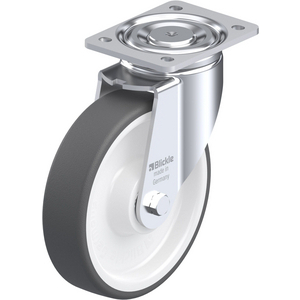

BLICKLE CASTOR LH-POTH 200K
Light duty swivel castor, with bolt hole fitting, with metal expander Wheel, with thermoplastic rubber tread, with polypropylene wheel centre, electrically conductive, non-marking
References
blickle:LH-POTH 200K
rubix:156A5725
manufacturer :44941
ean:4047526044947
Technical specifications
| Load capacity | 800 kg |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
Product details : BLICKLE CASTOR LH-POTH 200K
Bracket: LKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour black
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
- electrical conductivity (ohmic resistance) ≤ 104 Ω
Technical specifications
Attributes
| Logistic Weight | 4100 g |
|---|---|
| Load capacity | 800 kg |
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyurethane |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Grey |
| Shore A Hardness | 94 Shore |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| 245 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 119.23 excl. VAT
/ Each
£ 143.08 incl. VAT
Usually arrives within 14 working days
