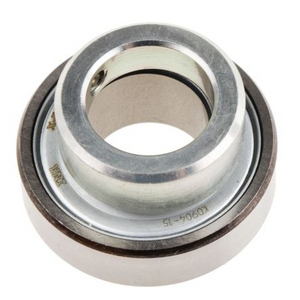

Insert bearing with eccentric clamping ring INA RALE20-NPP, Outer diameter: 42 mm | Inner diameter: 20 mm | Width: 24.5 mm
Radial Insert Ball Bearings
References
ina:RALE20-NPP
rubix:103A4677
Technical specifications
| Inner diameter | 20 mm |
|---|---|
| Outer diameter | 42 mm |
| Width | 24.5 mm |
Product details : INA BEARING INSERT RALE20-NPP
Radial insert ball bearings are ready-to-fit machine elements. In combination with drawn shafts, they are particularly easy to fit and suitable for the design of economical bearing arrangements. They are highly suitable where predominantly radial loads must be supported.
Technical specifications
Attributes
| Inner diameter | 20 mm |
|---|---|
| Outer diameter | 42 mm |
| Width | 24.5 mm |
| Series | RALE..-NPP |
| Basic static load, radial - C0r | 5000 N |
| Basic dynamic load, radial - Cr | 10000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 15.64 excl. VAT
/ Each
£ 18.77 incl. VAT
Sold out
