DORMER S5293.0XD3 6706502

DORMER S5293.0XD3 6706502

Radius end mills S529

See technical information
References
Dormer:S5293.0XD3
Rubix:376A3916
EAN:7320760680513

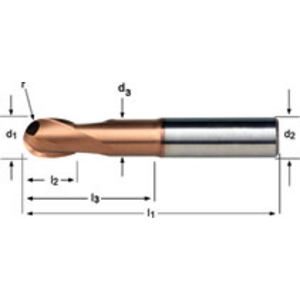

Ball-Nosed End Mill 3.0XD3 Dormer norm
Ball-Nosed End Mill 3.0XD3 Dormer norm
Ball-Nosed End Mill 3.0XD3 Dormer norm
Technical specifications
Diameter3 mm
Type of tailha
Tail diameter3 mm
See all Specifications

Product details : DORMER S5293.0XD3 6706502

Solid carbide (VHM) 2-flute radius end mill with short overhang. DIN 6335 HA cylindrical shank. 30° helix and -10° rake angle. TiSiN coated for hardened steel >49HRC.

Applications

• Alloyed steel hardened (49 - 55 HRC >1620 N/mm²)
• Alloyed steel hardened (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter3 mm
Type of tailha
Tail diameter3 mm
Number of teeth2
Length of cut5 mm
Total length50 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
Show UNSPSC/ECL@SS
£ 45.31 excl. VAT
/ Each
£ 54.37 incl. VAT
  • Usually arrives within 14 working days
