Self-aligning ball bearing SKF 2205 E-2RS1TN9/GFJ, Outer diameter: 52 mm | Width: 18 mm | Inner diameter: 25 mm
Self-aligning Ball Bearing
References
skf:2205 E-2RS1TN9/GFJ
rubix:237A3814
ean:07316575224974
Technical specifications
| Inner diameter | 25 mm |
|---|---|
| Outer diameter | 52 mm |
| Width | 18 mm |
Product details : SKF 2205 E-2RS1TN9/GFJ SABB - DEFAULT ( OD 420 MM)

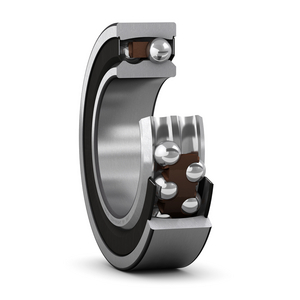

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Strengths
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
- Excellent high-speed performance
- Excellent light load performance
- Low friction
Technical specifications
Attributes
| Inner diameter | 25 mm |
|---|---|
| Outer diameter | 52 mm |
| Width | 18 mm |
| Sealing | Two rubber seals |
| Bearing Clearance | CN |
| Series | 22..E- |
| Material | Bearing steel |
Show UNSPSC/ECL@SS
£ 39.96 excl. VAT
/ Each
£ 47.95 incl. VAT
Usually arrives within 14 working days
