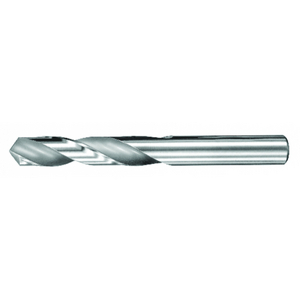

SGS SER 108M DRILL DIN 6539 68708 6MM
SGS Drill
References
sgs pro:68708
rubix:2554468
Technical specifications
| Drilling diameter | 6 mm |
|---|---|
| Total length | 66 mm |
| Length of cut | 21 mm |
Product details : SGS SER 108M DRILL DIN 6539 68708 6MM
Designed for effective drilling in a wide variety of materials and applications, this short rigid drill is an ideal compromise of performance and economy in shallow hole drilling. The point is a self centering point angle
Strengths
Short rigid drill
145° Self Centering Point
Effective in a wide range of materials
145° Self Centering Point
Effective in a wide range of materials
Applications
High-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
Technical specifications
Attributes
| Drilling diameter | 6 mm |
|---|---|
| Total length | 66 mm |
| Length of cut | 21 mm |
| Din standard | DIN 6539 |
| Coating | Non Coated |
| Tolerance | 0,000 To -0,012 |
| Direction of cutting | Right |
| Ratio of diameter to length of drill hole | 3xD |
| Body material | Carbide |
| Tip angle | 118 ° |
| Tail diameter | 6 mm |
Show UNSPSC/ECL@SS
£ 39.71 excl. VAT
/ Each
£ 47.65 incl. VAT
Usually arrives within 14 working days
