SNR UCFC210N BEARING UNIT
SNR - Bearing Unit - UCFC.210.N
References
snr:UCFC.210.N
rubix:205A9859
ean:3413529521678
Technical specifications
| Inner diameter | 50 mm |
|---|---|
| Width | 51.6 mm |
| Fixation centre-to-centre distance | 138 mm |
Product details : SNR UCFC210N BEARING UNIT

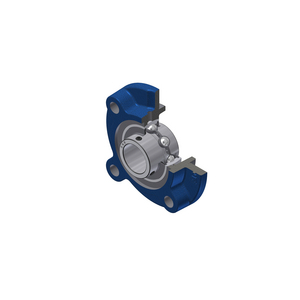

grey cast housing, radial insert ball bearing with socket set screws,seal with slinger
Technical specifications
Attributes
| Inner diameter | 50 mm |
|---|---|
| Width | 51.6 mm |
| Fixation centre-to-centre distance | 138 mm |
| Material | Cast Iron |
| Height | 40 mm |
| Length | 165 mm |
| Series | UCFC200 |
| Total bearing width | 165 mm |
| Diameter of fixation holes | 16 mm |
| Number of holes | 4 |
| Basic static load, radial - C0r | 23200 N |
| Basic dynamic load, radial - Cr | 35100 N |
| Outer diameter | 90 mm |
| Weight | 2.79 kg |
Show UNSPSC/ECL@SS
£ 41.31 excl. VAT
/ Each
£ 49.57 incl. VAT
Usually arrives within 14 working days
