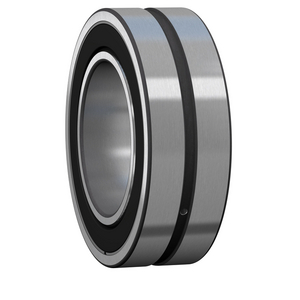

SKF 22324-2CS5/VT143 SPHERICAL ROLLER BEARING
Spherical Roller Bearing
References
skf:22324-2CS5/VT143
rubix:261A6918
manufacturer :306741
ean:7316573418214
Technical specifications
| Inner diameter | 120 mm |
|---|---|
| Outer diameter | 260 mm |
| Width | 86 mm |
Product details : SKF 22324-2CS5/VT143 SPHERICAL ROLLER BEARING
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 22336 g |
|---|---|
| Inner diameter | 120 mm |
| Outer diameter | 260 mm |
| Width | 86 mm |
| Bearing Clearance | CN |
| Series | 223C |
| Limit speed | 640 rpm |
| Basic static load, radial - C0r | 1120 N |
| Basic dynamic load, radial - Cr | 1022 N |
Show UNSPSC/ECL@SS
£ 1,167.47 excl. VAT
/ Each
£ 1,400.96 incl. VAT
Usually arrives within 14 working days
