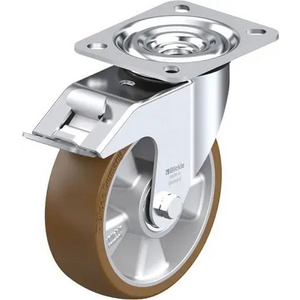

BLICKLE 915941 L-ALB 125K-FI SWIVEL CASTOR
Swivel Castor
References
blickle:L-ALB 125K-FI
rubix:241A8923
manufacturer :915941
ean:4047526347666
Technical specifications
| Load capacity | 625 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
Product details : BLICKLE 915941 L-ALB 125K-FI SWIVEL CASTOR
Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with Blickle Besthane® polyurethane tread, with aluminium wheel centre
Strengths
•Pressed steel, zinc-plated, blue-passivized, Cr6-free
Double ball bearing in the swivel head
Strong central kingpin (from wheel 150 mm)
Swivel head seal
Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
Wheel centre: die-cast aluminium, colour silver grey
High chemical resistance to many aggressive substances
Operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
With heavy-duty wheel centre, reinforced design
Double ball bearing in the swivel head
Strong central kingpin (from wheel 150 mm)
Swivel head seal
Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
Wheel centre: die-cast aluminium, colour silver grey
High chemical resistance to many aggressive substances
Operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
With heavy-duty wheel centre, reinforced design
Technical specifications
Attributes
| Load capacity | 625 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
| Type of wheel | Heavy Duty |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 150 mm |
| Type of bearing | Ball Bearing |
| Running sole / tire colour | Brown |
| Shore A Hardness | 92 Shore |
| Plate width | 100 mm |
| Plate length | 85 mm |
Show UNSPSC/ECL@SS
£ 95.34 excl. VAT
/ Each
£ 114.41 incl. VAT
Usually arrives within 14 working days
